Vulnerability Testing Against a Predominately UNIX-based Network (DRAFT)
Vulnerability Testing Against a Predominately UNIX-based Network (DRAFT)

Jeffrey S. Marker, CISSP

1 Introduction

Network vulnerability testing seems to be a self-describing term. When we perform this type of testing, we are interested in where and how hosts may be attacked via the network. We are concerned about potential vulnerabilities, not with exploiting these vulnerabilities. Exploiting vulnerabilities to demonstrate their danger is the providance of penetration testing, where the goal is to demonstrate how a networked host can be compromised.
We are limiting our discussion to ``predominately UNIX'' networks because we wish to address TCP/IP testing. We do not want to discuss NetBIOS or other non-TCP/IP protocols. The general methodology described herein should be applicable to non-TCP/IP protocols, although the tools may be different.
Network vulnerability testing is valuable for a number of reasons. The initial tests will help the systems, network, and security administrators develop a picture of what is present on the network. Subsequent tests can help map changes to the network. Regular testing can help discourage the running of unauthorized services. Vulnerability testing also helps demonstrate the effectiveness of current security measures, and the reports from the tests can be used to help evaluate, and make a case for, enhanced security measures. And, finally, there is always the remote chance that one might detect compromised hosts on the tested network¹
Vulnerability testing should not be performed to

Find hosts on the network to compromise,

Try to demonstrate that Biff down the hall does not know how to secure a computer.

The first of these reasons is of questionable legal and ethical standing, while the latter is simply juvenile.

2 Preparing for the testing

Network connectivity

To perform the vulnerability testing, we need to have at least one network connection. This can be either ``internal'' - inside the security perimeter - or ``external.'' Ideally, we would be able to have both an internal and an external connection, so we can compare the views of an external and internal threat.

External network connection

Simply put, the purpose of the external network connection is to allow us to see what an ``outsider'' will see during an attack. This connection should be outside of whatever perimeter security is in place for the network to be tested. Also, all automatic trust relationships between the testing platform and the hosts to be tested should be severed for the duration of the testing. This means that SSH keys, .rhosts, /etc/hosts, .netrc files and the like need to be checked to make certain that they are not allowing the testing platform access that other hosts or users can not be expected to have. Failure to sever these trust relationships may ultimately result in false-positive reports, which will make it appear that the network being tested is less secure than it actually is.
Because remote network vulnerability testing can be rather network intensive, it is best if the external network connection has a lot of bandwidth. This can be accomplished via the sundry commercial broadband solutions², by locating the testing platform at the site of a business partner, or by locating the testing platform at a remote site.

Internal network connection

The internal network connection is used for the internal testing. This allows us to see what ``insiders'' see, and to be able to make some value judgements regarding the effectiveness of the perimeter security. This connection should be inside the security perimeter of the network we are testing. Unlike the external testing, we do not need to sever our trust relationships, because it can be assumed that trust exists with other hosts - and other users - on the network.

Testing platform

The tools we will use to perform our testing are all UNIX based. Consequently, the testing platform will need to be able to run a version of UNIX as its operating system.

Tools

nmap

nmap is primarily a port scanner, rather than a vulnerability tester per se. We will use this tool in both the external and internal testing to determin which TCP and UDP services are listening on the tested hosts. We will also make use of nmap's operating system detection feature to make guesses at what operating systems are being run on the tested network. Finally, we will use some of nmap's scanning variations in the external testing to map out the perimeter security.
nmap can be obtained from http://www.insecure.org/nmap/.

SATAN

SATAN is the grand old man of network vulnerability testers, being released in 1995. Because of its age, it is often called obsolete. However, SATAN uses it's own method for probing services, which gives us another view of the network. Additionally, it was written with modularity in mind, so enhancing SATAN with localized tests is well-documented³ and relatively straight-forward.
SATAN can be obtained from http://www.porcupine.org/satan/.

SARA

SARA is a third-generation decendant of SATAN, with all of the advancements one might expect to find. It has hooks for using nmap for service scanning, an up-to-date vulnerability database, and a well-developed report writing feature.
SARA can be obtained from http://www-arc.com/sara/.

Nessus
Nessus is another modern vulnerability scanner. Unlike the SATAN family, it uses it's own console for configuration and reporting⁴, and is client-server based. Also, Nessus makes it easy to select precisely which tests to run, whereas the SATAN family selects its tests based upon a ``scanning level.''
Nessus can be obtained from http://www.nessus.org/.

Whisker

Whisker tests http servers for vulnerabilities. It will, therefore, only be used if hosts on the network are found to be running http servers.⁵
Whisker can be obtained from http://sourceforge.net/projects/whisker/.

House-keeping

Make a directory for the results of the tests. For the examples herein, we'll call that example.com_vuln_test. Under that directory, we will make external and internal, so as to be able to better organize the different tests.

Protection

When we perform the tests, there are two items we need to protect: ourselves and the data the testing generates. We need to protect ourselves from ``real world'' ramifications, such as letters of reprimand, demotion, firing, and/or legal action. We need to protect both the confidentiality and the integrity of the data.
We protect ourselves by obtaining approval to perform the testing before we begin. In some organizations, this includes obtaining permission to possess the above mentioned tools⁶. Regardless of the organization, however, pre-approval from the network owner must be obtained. This means getting approval from management, not the network administrators. We want to get the approval from as far up the food chain as is possible.
We protect the data via file permissions, encryption, and labeling. Our file permissions should be as restrictive as is possible, allowing only the owner access⁷. We should also encrypt the data while it is stored⁸. Additionally, if the final report is to be transferred electronicly, it should be done so in an encrypted form⁹. Finally, the report should be properly labeled¹⁰. This helps prevent accidental disclosure via honest mistake, as well as encouraging the authorized recipients to be more protective of the document.

3 Testing

One important rule is to not launch denial of service attacks against production networks during ``normal'' production hours¹¹.

3.1 External testing

If perimeter security is in force on the network to be tested, it is possible that we are able to know what security policies are being enforced on the perimeter. This ``insider'' knowledge will modify the nmap portion of the test, as we can avoid a comprehensive port scan, and, instead, scan only those services which are allowed to pass through the perimeter.

Open service detection with nmap

We begin the testing with nmap, because that will give us a picture of open services. First, we will will probe all TCP ports, via

% nmap -sT -p 1-65535 -P0 -n -oA tcp_services -v \ -iL hosts_to_scan

This will take quite some time to run, especially if the perimeter security utilizes rule that drop, rather than reject, unwanted packets. When it finishes, however, we will have three files called tcp_services.gnmap, tcp_services.nmap, and tcp_services.xml in the example.com_vuln_test/external directory.
Next, we will probe all UDP ports, via

% nmap -sU -p 1-65535 -P0 -n -oA udp_services -v \ -iL hosts_to_scan

As is the case with the TCP probe, this test will take quite a while to run. When is is finished, we will have files called udp_services.gnmap, udp_services.nmap, and udp_services.xml in the example.com_vuln_test/external directory.

Statistics, Research, and Test Creation

The next step is to create a frequency list of open services. This can be accomplished by using the Perl-script service_freq.pl (Figure 2) in the following fashion¹²:

% service_freq.pl tcp_services.xml | sort -rn +1

This will provide a list of TCP services, sorted in reverse numerical order by the number of times they appear on the network. A sample of such a list can be found in figure 1 on page . Running

% service_freq.pl udp_services.xml | sort -rn +1

will produce a similar list of UDP services.

Figure 1: Sample TCP service frequency list
$\begin{figure}\begin{center} \begin{tabular}{\vert l\vert} \hline tcp-22: 30 ... ... \\ tcp-31337: 1 \\ tcp-23: 1 \\ \hline \end{tabular}\end{center}\end{figure}$

We examine the frequency lists for services we know should be running - such as tcp-22¹³ and tcp-80¹⁴ in the sample¹⁵ - and for services we know should not be running - such as tcp-6667¹⁶ in the sample. In the process, we will probably find services that are listed neither in /etc/services or in the tcp_services.nmap or udp_services.nmap files. These should be researched¹⁷, as should any named services that are unfamiliar or unexpected.
The vulnerability testing programs we are using will likely have tests for most, if not all, of the services nmap shows us. It is important to remember, however, that information security is a moving target. The tools we use can only find vulnerabilities for which they have tests, and vulnerabilites, as well as their corresponding exploits, are ever changing. Thus, it is possible, if not likely, that some services nmap tells us are running will not have tests included in the standard package. Consequently, we may need to search the Internet for tests, or we may have to write our own¹⁸.
Once we have tests to check for vulnerabilities on all of the services reported running, we're ready to begin the vulnerability testing proper.

3.2 Being tricky
If we are not privy to the perimeter security rules, we can make use of nmap's built-in tricks to test whether the perimeter security is a smoke-screen.

3.3 Internal testing

4 Analyze

4.1 False positives
Many of the tools only check banners - they don't actually test the vulnerability. Because many network daemons allow the administrator to use arbitrary headers, it may be necessary to verify the results of such tools by hand, either exhaustively or by examining a random sample.

4.2 False negatives
The tools we use are only as knowledgeable as their vulnerability databases are up-to-date. Fortunately, most of these tools allow direct review of all of the responses to their tests, without the filter of the front-end.

4.3 Comparison between external and internal tests

4.4 Danger signs

5 Conclusions

A. service_freq.pl

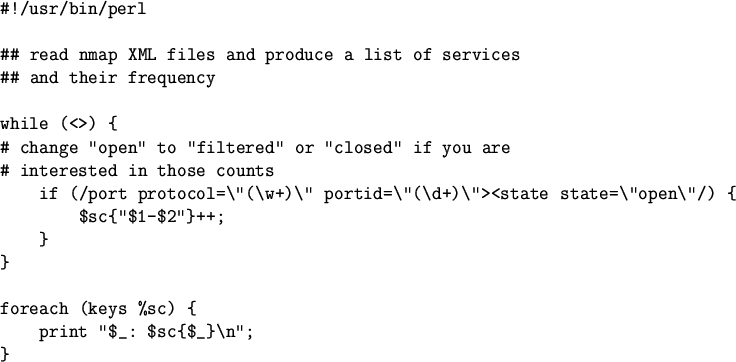

Figure 2: service_freq.pl
$\begin{figure}\begin{center} \begin{verbatim}...$

B. Researching mysterious services

For example, the TCP service 31337 in the sample frequency list probably has no listing in /etc/services, so we would go to www.dshield.org and query that service.

C. What is not being tested
We have been describing network vulnerability testing, not penetration testing or the art of performing a security audit. It is important to note the general areas we do not test, if only to remind readers that the journey of security is never complete.

C..1 The system level

This method of testing does not examine system-level security issues. We do not examined the systems for weak static passwords¹⁹. We do not examined file-system permissions. We do not examine /etc/hosts or sundry .rhosts files for sanity, except for the ``trust'' tests performed for the root and/or bin users. We do not examine the sudo(8) configuration file for sanity. And, finally, we do not examine setuid permission, program versions, shared-library versions, or operating system patch levels, except as they may be revealed by network daemons.
Please note again that the list of system-level issues given in the previous paragraph is not inclusive, but is, instead, intended to provide a starting point, as well as to stress the complexity of system-level security.

C..2 Physical security

Physical security is often over-looked when an organization examines its security stance. The reasons for this are many, but included in them is the misbegotten believe that information security is only about firewalls, virus scanning, and intrusion detection -- in other words, that information security is entirely in the ``virtual'' world.

C..3 Clandestine gathering

C..4 Social engineering

C..5 Source code reviews

Footnotes

... network ¹
Vulnerability testing should not be thought of as a substitute for intrusion detection technologies.
... solutions ²
such as DSL or cable modems.
... well-documented ³
See, for example, Protecting Networks with SATAN by Martin Freiss.
... reporting ⁴
The SATAN family uses a Web browser.
... servers.⁵
Note that this is not the same thing as ``hosts listening on TCP port 80.
... tools ⁶
Some organizations have strict policies regulating which job functions are allowed to possess ``cracker'' tools.
... access ⁷
It is possible that the group might be allowed access, if the testing and analysis is being performed by a team.
... stored ⁸
The discussion of cryptographic tools is beyond the scope of this document. However, we have used both Matt Blaze's cfs (http://www.crypto.com/papers/cfs.pdf) and gnupg (http://www.gnupg.org/) with success.
... form ⁹
Methods of encrypting electronic mail are many - one might start with S/MIME or gnupg. Methods of encrypting data sent to network printers are not as well documented.
... labeled ¹⁰
ie. ``Confidential: disclose and distribute to Jiffy Script, Inc. employees having a need to know,'' or ``Ultra secret.''
... hours ¹¹
The windows when hosts or networks can be taken down for maintenance will be defined in the organization's policies.
... fashion ¹²
There are, of course, other methods of accomplishing this.
... tcp-22 ¹³
SSH.
... tcp-80 ¹⁴
HTTP.
... sample ¹⁵
Figure 1 on page .
... tcp-6667 ¹⁶
IRC.
... researched ¹⁷
See appendix B for hints on how to research mysterious services.
... own ¹⁸
This is left as an exercise to the reader, although each of the tools does contain some advice on how to write tests. That's why we use open source.
... passwords ¹⁹
It can be argued that all static passwords are weak in the modern age.
